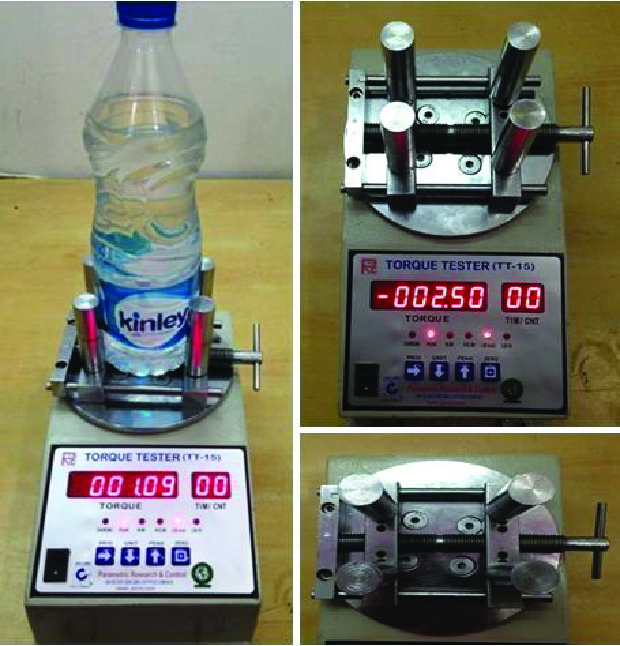

Torque Tester for Bottle Cap

We offer an excellent solution for the testing of opening & closing torque of bottle cap. As a critical application, torque testing of bottle caps has always been a challenging job for bottle manufacturers. This tester is designed to meet the requirement of precision torque testing of bottle cap opening/closing. The torque of bottle cap is measured in a very safe and precise manner to ensure the reliability, quality, and performance of various types of bottles.

Salient Features:

  • Highly precision torque measurement
  • Long term durability & reliability
  • Use of reliable & industrial class components
  • Cost effective & user friendly
  • Designed to suit industrial environment
  • Aesthetically attractive
  • Rugged & robust construction
Torque Tester

Technical Features

Torque Sensor Capacity 0-50 Kg.cm
Testing Range 0-50 Kg.cm
Sensor Type Strain-gauge based reaction type torque sensor
Least Count 0.01 Kg.cm
Measurement Unit Microcontroller based measuring system with tare zero, auto peak and reset facility, peak hold, high & low limits setting provision, OK & NG, two relay output
Digital Display 6 Digit LED
Converter 18-bit Analog to Digital Converter
Accuracy Better than 0.25 % of FSD within range of 10 to 90 % of capacity
Unit Conversion N.m, N.cm, Kg.cm & LB.ft
Working mode CW and CCW
Circuit Supply 5 V DC to 12 V DC
Mains Power Supply 220 V AC, ± 10 %, 50 Hz
Protection Electrical noise protected circuit, password protection etc.
Structure All in one adjustable mechanism for different size of bottles
