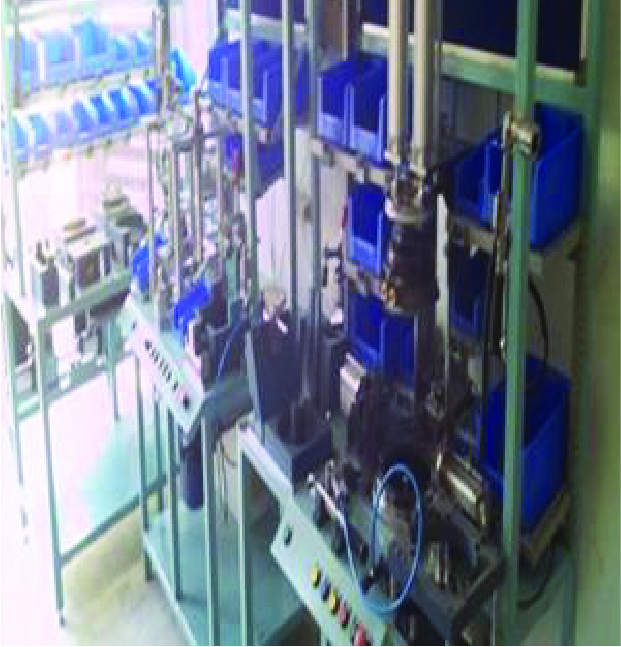

Mutex Instruments has designed this specialized Assembly Line with a focus on precision, reliability, and enhanced process efficiency. The line is divided into three stations to streamline the manufacturing and assembly process of IBV, spring piston, flange, and nut assemblies.
Each station is intelligently designed with a microcontroller-based control unit, ensuring a single flow sequential process plan with complete automation support.
This Assembly Line is designed and engineered for precise IBV assembly and various sub-assembly operations. With its automated control system, it ensures consistent performance, enhanced production rate, and minimized manual errors.
| Machine Structure | MS angle working table |
| Base Plate | Machined and zinc plated to prevent rusting |
| Structure | Duly painted for corrosion resistance |
| Leveling Pads | Provided for ±25 mm height adjustments |
| Panel | Microcontroller-based sequence panel |
| Display | 16 × 2 LCD display with backlight for parameter display |
| Keypad | 8-key keypad for parameter setting |
| Inputs & Outputs | 48 digital inputs & 32 digital outputs, mini-fit connectors, buzzer, 2A fuse |
| Power Supply | 220V AC ±10%, 50Hz (Mains), 5V DC & 24V DC (Circuit) |
