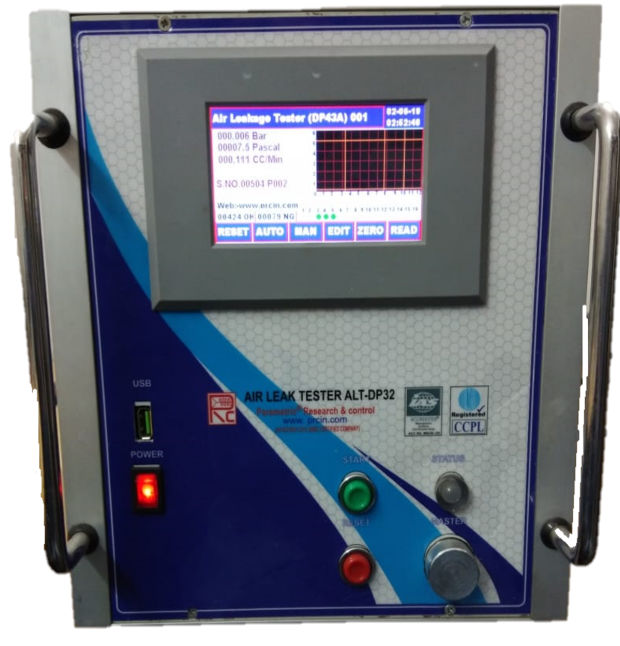

Mutex Leak Tester (ALT-DP-32 )

The Mutex ALT-DP-32 Leak Tester is an advanced differential pressure-based system designed for high accuracy and reliability. With support for up to 255 recipes, a user-friendly touchscreen HMI (4.3”), and secure data storage, it is ideal for industries requiring precise leak detection. The system ensures accurate test results and integrates seamlessly into modern production lines.

mutex leak tester

Product Specifications

Product Type Leak Tester
Main Feature Differential Pressure Leak Measurement
Test Pressure 0.1 to 20 bars
Interface Touchscreen HMI (4.3”)
Weight 9 Kilograms (Kg)
Dimension 250 x 320 x 275 mm
Electrical Supply 220V AC ±10%, 50 Hz
Air Supply Clean & Dry Air (ISO 8573-1)
Temperature +5°C to +55°C (Operating)
Usage Leakage Testing
Type Electronic
Application Industrial & Commercial Leak Testing
